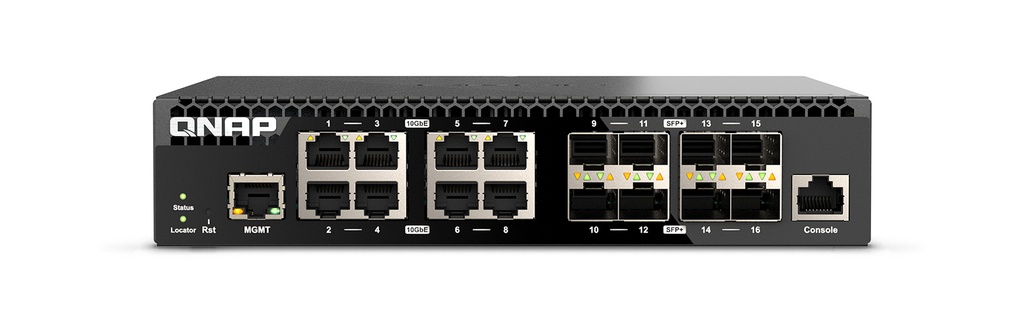

QNAP QSW-M3216R-8S8T, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack-montage, 1U
QNAP QSW-M3216R-8S8T. Switch type: Managed, Switch-laag: L2/L3. Type basis-switching RJ-45 Ethernet-poorten: 10G Ethernet (100/1000/10000), Aantal basis-switching RJ-45 Ethernet-poorten: 8, Aantal geïnstalleerde SFP+ modules: 8, Console port: RJ-45. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 320 Gbit/s. Netwerkstandaard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack-montage, Vormfactor: 1U
Beheerfuncties
| Switch type | Managed |
| Switch-laag | L2/L3 |
Poorten & interfaces
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | 10G Ethernet (100/1000/10000) |
| Aantal geïnstalleerde SFP+ modules | 8 |
| Console port | RJ-45 |
Netwerk
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Datastroombeheer | Ja |
Data-uitwisseling
| Switchingcapaciteit | 320 Gbit/s |
| Doorvoercapaciteit | 160 Gbit/s |
| MAC-adrestabel | 16000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
Beveiliging
| Access Control List (ACL) | Ja |
Design
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
Energie
| Stroombron | AC |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 48,632 W |
Overige specificaties
| Garantieperiode | 2 jaar |
Eisen aan de omgeving
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
Gewicht en omvang
| Breedte | 197 mm |
| Diepte | 207 mm |
| Hoogte | 43,3 mm |
| Gewicht | 1,52 kg |
Verpakking
| Type verpakking | Doos |
| Breedte verpakking | 324 mm |
| Diepte verpakking | 282 mm |
| Hoogte verpakking | 88 mm |
| Gewicht verpakking | 1,52 kg |
Logistieke gegevens
| Land van herkomst | Taiwan |
| Hoeveelheid per (buitenste) hoofdverpakking | 8 stuk(s) |
