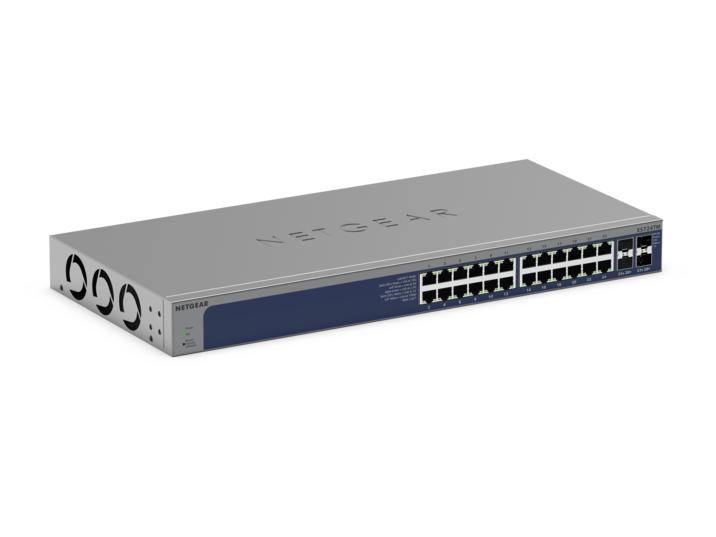

NETGEAR XS724TM, Managed, L2/L3/L4, Full duplex, Rack-montage
NETGEAR XS724TM. Switch type: Managed, Switch-laag: L2/L3/L4. Full duplex. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 560 Gbit/s. Rack-montage
Beheerfuncties
| Switch type | Managed |
| Switch-laag | L2/L3/L4 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Cloud-beheerd | Ja |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
Poorten & interfaces
| Aantal 10G Ethernet (koper)poorten | 24 |
| Aantal moduleslots SPF+ | 4 |
Netwerk
| 10G support | Ja |
| Port mirroring | Ja |
| Full duplex | Ja |
| IP routing | Ja |
| Routing entries | 64 |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Spanning tree protocol | Ja |
| IPv4-routes | 64 |
| IPv6-routes | 32 |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 512 |
Data-uitwisseling
| Switchingcapaciteit | 560 Gbit/s |
| MAC-adrestabel | 16000 entries |
| Aantal wachtrijen | 8 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 4 MB |
Beveiliging
| DHCP-functies | DHCP client, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Ja |
| Toegangsbeheerlijst (ACL) IPv6-vermeldingen | 100 |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, EAP |
| Bescherming lus | Ja |
| BPDU filtering / bescherming | Ja |
| Wachtwoordbeveiliging | Ja |
| Authenticatie type | RADIUS |
Multicast-functies
| Multicast-ondersteuning | Ja |
| Multicast Listener Discovery (MLD) snooping | MLD snooping support (v1 and v2) |
Protocollen
| GARP VLAN Registratieprotocol (GVRP) | Ja |
Design
| Rack-montage | Ja |
| Kleur van het product | Grijs |
| LED-indicatoren | Ja |
| Aantal ventilatoren | 3 ventilator(en) |
Prestatie
| Type processor | Ja |
| Frequentie van processor | 1250 MHz |
| Type geheugen | RAM |
| Intern geheugen | 1000 MB |
| Flash memory | 256 MB |
| Geluidsniveau | 29,61 dB |
| Upgraden van firmware mogelijk | Ja |
| Mean time between failures (MTBF) | 408354,7 uur |
Energie
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Vermogensverbruik (max) | 92,5 W |
Eisen aan de omgeving
| Bedrijfstemperatuur (T-T) | 0 - 50 °C |
| Temperatuur bij opslag | -20 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Warmtedissipatie | 315,66 BTU/h |
Gewicht en omvang
| Breedte | 400 mm |
| Diepte | 204 mm |
| Hoogte | 43,2 mm |
| Gewicht | 3,38 kg |
