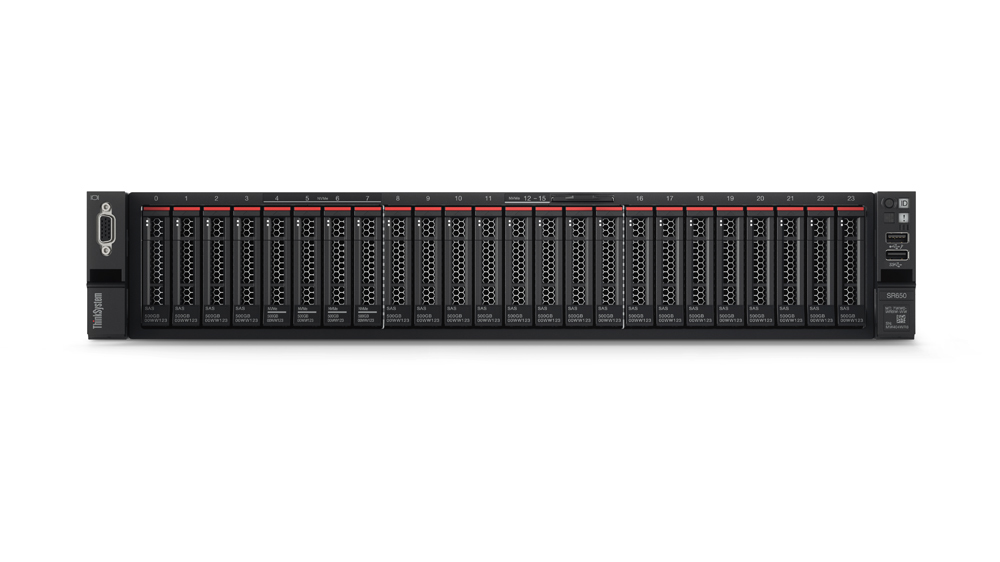

Lenovo ThinkSystem SR650, 2,3 GHz, 5218, 32 GB, DDR4-SDRAM, 0 GB, Rack (2U)
Lenovo ThinkSystem SR650. Processorfamilie: Intel® Xeon® Gold, Frequentie van processor: 2,3 GHz, Processormodel: 5218. Intern geheugen: 32 GB, Intern geheugentype: DDR4-SDRAM, Geheugenlayout: 1 x 32 GB. Totale opslagcapaciteit: 0 GB. Ethernet LAN, Bekabelingstechnologie: 10/100/1000Base-T(X). Netvoeding: 750 W, Redundante voeding. Type behuizing: Rack (2U)
Processor
| Processorfabrikant | Intel |
| Processorfamilie | Intel® Xeon® Gold |
| Processorgeneratie | 2e generatie Intel® Xeon® schaalbaar |
| Processormodel | 5218 |
| Frequentie van processor | 2,3 GHz |
| Maximale turbofrequentie van processor | 3,9 GHz |
| Aantal processorkernen | 16 |
| Processor cache | 22 MB |
| Aantal geïnstalleerde processoren | Ja |
| Thermal Design Power (TDP) | 125 W |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithografie | 14 nm |
| Processor aantal threads | 32 |
| Processor operating modes | 64-bit |
| Codenaam processor | Cascade Lake |
| Tcase | 87 °C |
| Maximaal intern geheugen ondersteund door processor | 1 TB |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2667 MHz |
| Execute Disable Bit | Ja |
| Maximaal aantal PCI Express-lijnen | 48 |
| Verpakkingsgrootte processor | 76.0 x 56.5 mm |
| Ondersteunde instructie sets | AVX-512 |
| Schaalbaarheid | 4S |
| Ingebouwde opties beschikbaar | Nee |
Geheugen
| Intern geheugen | 32 GB |
| Intern geheugentype | DDR4-SDRAM |
| Kloksnelheid geheugen | 2666 MHz |
| Geheugenlayout | 1 x 32 GB |
Opslagmedia
| Totale opslagcapaciteit | 0 GB |
| Ondersteunde HDD-groottes | 2.5" |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 6, 10, 50, 60 |
| Ondersteunde RAID-controllers | 930-8i 2GB Flash |
| Hot-swap | Ja |
| Soort optische drive | Nee |
Grafisch
| Ingebouwde grafische adapter | Ja |
| On-board graphics adapter model | Niet beschikbaar |
Netwerk
| Ethernet LAN | Ja |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
Poorten & interfaces
| Aantal USB 2.0-poorten | Ja |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| VGA (D-Sub)poort(en) | Ja |
Uitbreidingsmodules
| PCI Express slots versie | 3.0 |
Design
| Type behuizing | Rack (2U) |
| Kleur van het product | Zwart, Zilver |
| Rack-montage | Ja |
Prestatie
| Prestatiebeheer | XClarity Enterprise |
| Trusted Platform Module (TPM) | Ja |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Inclusief besturingssysteem | Nee |
| Compatibele besturingssystemen | Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3 |
Processor speciale functies
| Enhanced Intel SpeedStep Technology | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Intel® Trusted Execution Technology | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® TSX-NI | Ja |
| Intel® 64 | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| ARK ID processor | 192444 |
Energie
| Redundante voeding | Ja |
| Netvoeding | 750 W |
Logistieke gegevens
| Code geharmoniseerd systeem (HS) | 84714100 |
Duurzaamheid
| Duurzaamheidscertificaten | ENERGY STAR |
Gewicht en omvang
| Breedte | 445 mm |
| Diepte | 720 mm |
| Hoogte | 87 mm |
