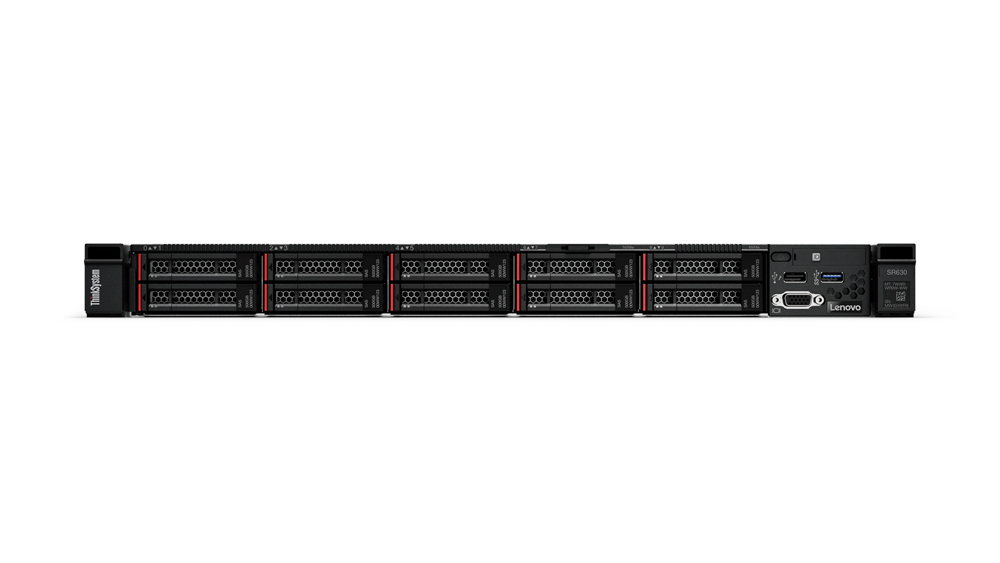

Lenovo ThinkSystem SR630, 2,2 GHz, 4210, 16 GB, DDR4-SDRAM, 750 W, Rack (1U)
Lenovo ThinkSystem SR630. Processorfamilie: Intel® Xeon® Silver, Frequentie van processor: 2,2 GHz, Processormodel: 4210. Intern geheugen: 16 GB, Intern geheugentype: DDR4-SDRAM, Geheugenlayout: 1 x 16 GB. Ethernet LAN, Bekabelingstechnologie: 10/100/1000Base-T(X). Netvoeding: 750 W, Redundante voeding. Type behuizing: Rack (1U)
Processor
| Processorfabrikant | Intel |
| Processorfamilie | Intel® Xeon® Silver |
| Processorgeneratie | 2e generatie Intel® Xeon® schaalbaar |
| Processormodel | 4210 |
| Frequentie van processor | 2,2 GHz |
| Maximale turbofrequentie van processor | 3,2 GHz |
| Aantal processorkernen | 10 |
| Processor cache | 13,75 MB |
| Chipset moederbord | Intel® C624 |
| Aantal geïnstalleerde processoren | Ja |
| Thermal Design Power (TDP) | 85 W |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithografie | 14 nm |
| Processor aantal threads | 20 |
| Processor operating modes | 64-bit |
| Codenaam processor | Cascade Lake |
| Tcase | 78 °C |
| Maximaal intern geheugen ondersteund door processor | 1 TB |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2400 MHz |
| Execute Disable Bit | Ja |
| Maximaal aantal PCI Express-lijnen | 48 |
| Verpakkingsgrootte processor | 76.0 x 56.5 mm |
| Ondersteunde instructie sets | AVX-512 |
| Schaalbaarheid | 2S |
| Ingebouwde opties beschikbaar | Ja |
Geheugen
| Intern geheugen | 16 GB |
| Intern geheugentype | DDR4-SDRAM |
| Geheugenslots | 24 |
| ECC | Ja |
| Kloksnelheid geheugen | 2666 MHz |
| Geheugenlayout | 1 x 16 GB |
Opslagmedia
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 6, 10, 50, 60 |
| Ondersteunde RAID-controllers | 930-8i 2GB |
| Soort optische drive | Nee |
| Interne drive bays | 8 |
| Geïntegreerde geheugenkaartlezer | Nee |
Grafisch
| Aparte grafische adapter | Nee |
| On-board graphics adapter model | Niet beschikbaar |
Netwerk
| Wifi | Nee |
| Bluetooth | Nee |
| Ethernet LAN | Ja |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
Uitbreidingsmodules
| PCI Express x8 slots | Ja |
| PCI Express slots versie | 3.0 |
Design
| Type behuizing | Rack (1U) |
| Kleur van het product | Zwart, Metallic |
| Rack-montage | Ja |
| Overtollige fans ondersteuning | Ja |
| Rekrails | Ja |
Prestatie
| Prestatiebeheer | XClarity Enterprise |
| Trusted Platform Module (TPM) | Ja |
Software
| Compatibele besturingssystemen | Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64TSP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 |
Processor speciale functies
| Enhanced Intel SpeedStep Technology | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Intel® Trusted Execution Technology | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® TSX-NI | Ja |
| Intel® 64 | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| ARK ID processor | 193384 |
Energie
| Redundante voeding | Ja |
| Netvoeding | 750 W |
| Aantal geïnstalleerde redundante voedingen | Ja |
| Ingangsfrequentie voeding | 50 - 60 Hz |
Eisen aan de omgeving
| Bedrijfstemperatuur (T-T) | 5 - 45 °C |
| Temperatuur bij opslag | -40 - 60 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 8 - 90 procent |
| Luchtvochtigheid bij opslag | 8 - 90 procent |
| Hoogte, in bedrijf | 0 - 3050 m |
Logistieke gegevens
| Code geharmoniseerd systeem (HS) | 84714100 |
Duurzaamheid
| Duurzaamheidscertificaten | ENERGY STAR |
Gewicht en omvang
| Breedte | 434 mm |
| Diepte | 715 mm |
| Hoogte | 43 mm |
Overige specificaties
| Ingebouwd display | Nee |
