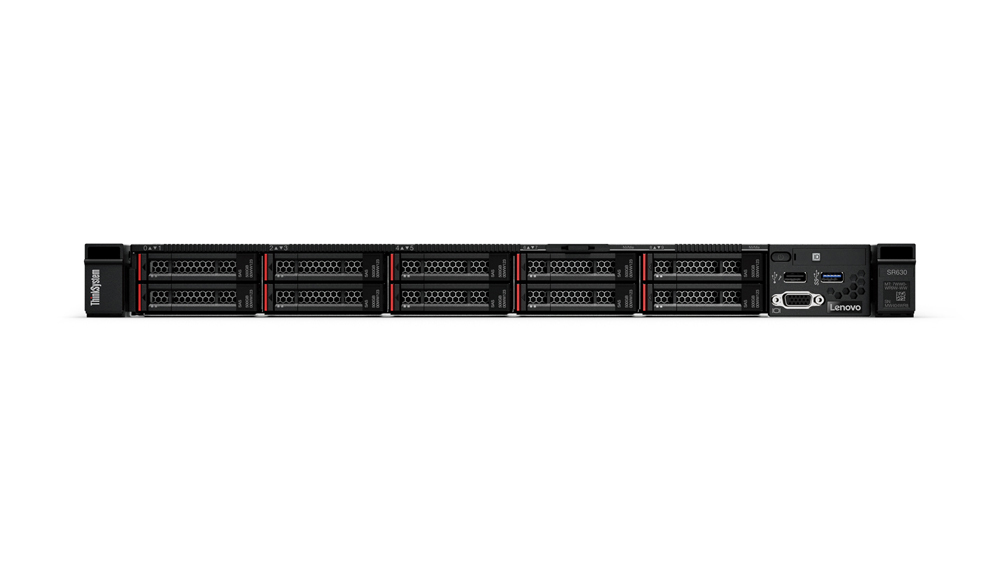

Lenovo ThinkSystem SR630, 2,2 GHz, 4214, 16 GB, DDR4-SDRAM, 750 W, Rack (1U)
Lenovo ThinkSystem SR630. Processorfamilie: Intel® Xeon® Silver, Frequentie van processor: 2,2 GHz, Processormodel: 4214. Intern geheugen: 16 GB, Intern geheugentype: DDR4-SDRAM, Geheugenlayout: 1 x 16 GB. Ethernet LAN, Bekabelingstechnologie: 10/100/1000Base-T(X). Netvoeding: 750 W, Redundante voeding. Type behuizing: Rack (1U)
Processor
| Processorfabrikant | Intel |
| Processorfamilie | Intel® Xeon® Silver |
| Processorgeneratie | 2e generatie Intel® Xeon® schaalbaar |
| Processormodel | 4214 |
| Frequentie van processor | 2,2 GHz |
| Maximale turbofrequentie van processor | 3,2 GHz |
| Aantal processorkernen | 12 |
| Processor cache | 16,5 MB |
| Chipset moederbord | Intel® C624 |
| Aantal geïnstalleerde processoren | Ja |
| Thermal Design Power (TDP) | 85 W |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithografie | 14 nm |
| Processor aantal threads | 24 |
| Processor operating modes | 64-bit |
| Codenaam processor | Cascade Lake |
| Tcase | 77 °C |
| Maximaal intern geheugen ondersteund door processor | 1 TB |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2400 MHz |
| Execute Disable Bit | Ja |
| Maximaal aantal PCI Express-lijnen | 48 |
| Verpakkingsgrootte processor | 76.0 x 56.5 mm |
| Ondersteunde instructie sets | AVX-512 |
| Schaalbaarheid | 2S |
| Ingebouwde opties beschikbaar | Ja |
Geheugen
| Intern geheugen | 16 GB |
| Intern geheugentype | DDR4-SDRAM |
| Geheugenslots | 24 |
| Kloksnelheid geheugen | 2666 MHz |
| Geheugenlayout | 1 x 16 GB |
Opslagmedia
| Ondersteunde HDD-groottes | 2.5" |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 6, 10, 50, 60 |
| Ondersteunde RAID-controllers | 930-8i 2GB |
| Hot-swap | Ja |
Grafisch
| Ingebouwde grafische adapter | Ja |
| On-board graphics adapter model | Niet beschikbaar |
Netwerk
| Ethernet LAN | Ja |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
Poorten & interfaces
| Aantal USB 2.0-poorten | Ja |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| VGA (D-Sub)poort(en) | Ja |
Uitbreidingsmodules
| PCI Express slots versie | 3.0 |
Design
| Type behuizing | Rack (1U) |
| Kleur van het product | Zwart, Zilver |
| Rack-montage | Ja |
Prestatie
| Prestatiebeheer | XClarity |
| Trusted Platform Module (TPM) | Ja |
Software
| Compatibele besturingssystemen | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1 ,Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 Xen SP4 , SUSE Linux Enterprise Server 12 Xen SP5 SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 Xen, SUSE Linux Enterprise Server 15 Xen SP1, SUSE Linux Enterprise Server 15 Xen SP2, VMware ESXi 6.5 U2, VMware ESXi 6.5 U3, VMware ESXi 6.7 U1, VMware ESXi 6.7 U2, VMware ESXi 6.7 U3 VMware ESXi 7.0, VMware ESXi 7.0 U1 |
Processor speciale functies
| Enhanced Intel SpeedStep Technology | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Intel® Trusted Execution Technology | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® TSX-NI | Ja |
| Intel® 64 | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| ARK ID processor | 193385 |
Energie
| Redundante voeding | Ja |
| Netvoeding | 750 W |
| Aantal ondersteunde redundante voedingen | 2 |
| Aantal hoofdvoedingen | Ja |
Logistieke gegevens
| Code geharmoniseerd systeem (HS) | 84714100 |
Duurzaamheid
| Duurzaamheidscertificaten | ENERGY STAR |
Gewicht en omvang
| Breedte | 435 mm |
| Diepte | 750 mm |
| Hoogte | 43 mm |
