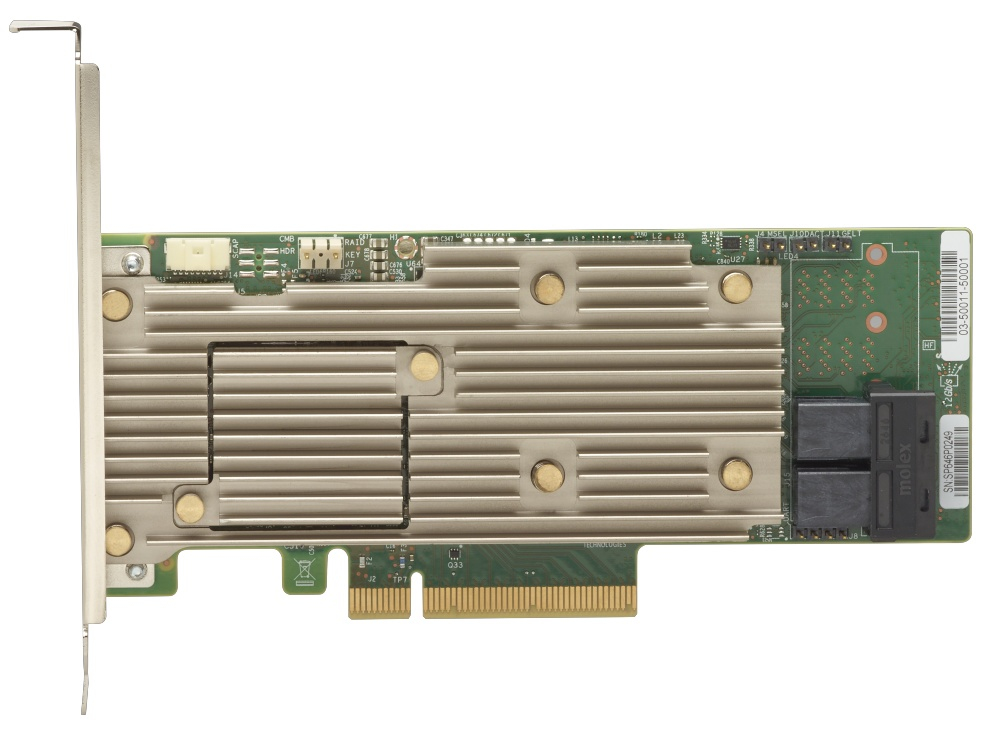

Lenovo 7Y37A01084, SAS, SATA III, PCI Express x8, 0, 1, 10, 5, 50, 6, 60, 12000 Gbit/s, LSI SAS3508, FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe...
Lenovo 7Y37A01084. Ondersteunde opslagstationinterfaces: SAS, SATA III, Hostinterface: PCI Express x8. Soorten RAID: 0, 1, 10, 5, 50, 6, 60, Overdrachtssnelheid: 12000 Gbit/s, Chipset: LSI SAS3508. Ondersteunt Linux: SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12, Compatibele besturingssystemen: Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0..., Ondersteunde server operating systems: Windows Server 2012 R2, Windows Server 2016. PCI Card form factor: Full-height (low-profile)
Poorten & interfaces
| Ondersteunde opslagstationinterfaces | SAS, SATA III |
| Hostinterface | PCI Express x8 |
| PCI Express slots versie | 3.0 |
| Interne mini-SAS-HD-poorten | 2 |
| Externe SAS-poorten | 8 |
Prestatie
| Soorten RAID | 0, 1, 10, 5, 50, 6, 60 |
| RAID Level Migratie | Ja |
| Overdrachtssnelheid | 12000 Gbit/s |
| SSD-ondersteuning | Ja |
| Chipset | LSI SAS3508 |
| S.M.A.R.T. support | Ja |
| Number of devices supported | 8 |
| Online Capaciteit vergroting | Ja |
| Hot-swap | Ja |
| Certificering | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
Minimale systeemeisen
| Ondersteunt Linux | SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12 |
| Compatibele besturingssystemen | Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
| Ondersteunde server operating systems | Windows Server 2012 R2, Windows Server 2016 |
Eisen aan de omgeving
| Bedrijfstemperatuur (T-T) | 10 - 55 °C |
| Temperatuur bij opslag | -40 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
Logistieke gegevens
| Code geharmoniseerd systeem (HS) | 84733080 |
Overige specificaties
| PCI Card form factor | Full-height (low-profile) |
