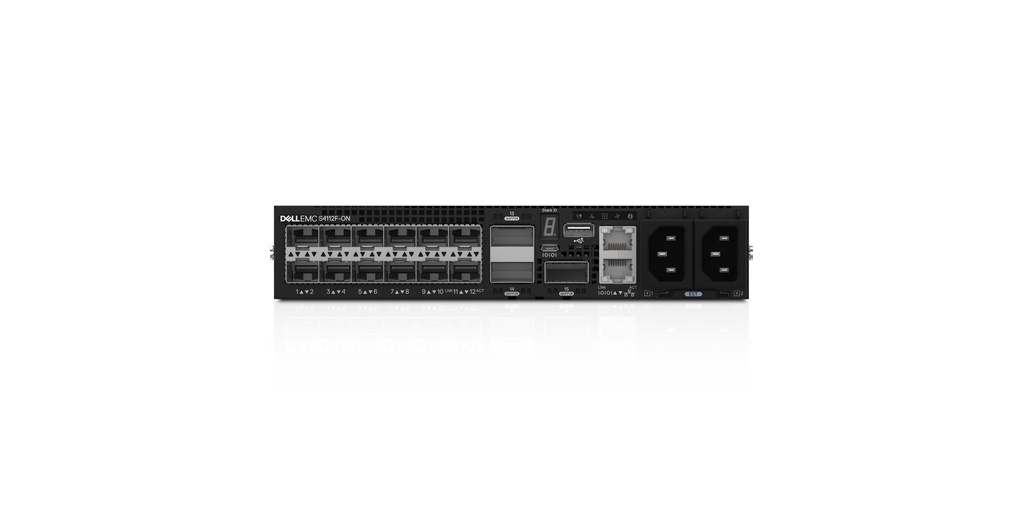

DELL S-Series S4112, Managed, L2/L3, Rack-montage, 1U
DELL S-Series S4112. Switch type: Managed, Switch-laag: L2/L3. Switchingcapaciteit: 840 Gbit/s. Netwerkstandaard: IEEE 802.3. Rack-montage, Vormfactor: 1U
Beheerfuncties
| Switch type | Managed |
| Switch-laag | L2/L3 |
| Quality of Service (QoS) | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
Poorten & interfaces
| Aantal moduleslots SPF | Ja |
| Aantal moduleslots SPF+ | 12 |
| Aantal GSFP+-moduleslots | 3 |
Netwerk
| Netwerkstandaard | IEEE 802.3 |
| 10G support | Ja |
| VLAN=ondersteuning | Ja |
Data-uitwisseling
| Switchingcapaciteit | 840 Gbit/s |
| Throughput | 630 Mpps |
| Latentie (10-100 Mbps) | 800 µs |
Multicast-functies
| Multicast-ondersteuning | Ja |
Protocollen
| GARP VLAN Registratieprotocol (GVRP) | Ja |
Design
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Ventilatiesysteem | Luchtstroom van voren naar achteren |
| Aantal ventilatoren | 3 ventilator(en) |
| Veiligheid | UL/CSA 60950-L Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition Including all National Deviations and Group Differences, EN 60825-1 Safety of Laser Products Part1: Equipment Classification Requirements and User’s Guide, EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communications Systems, FDA Regulation 21 CFR 1040.10 and 1040.11 |
Energie
| Vermogenstoevoer inclusief | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroomverbruik (typisch) | 90 W |
| Vermogensverbruik (max) | 180 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Nee |
Eisen aan de omgeving
| Bedrijfstemperatuur (T-T) | 5 - 40 °C |
| Temperatuur bij opslag | -40 - 65 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 85 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Warmtedissipatie | 614 BTU/h |
Gewicht en omvang
| Gewicht | 3,76 kg |
Logistieke gegevens
| Code geharmoniseerd systeem (HS) | 85176990 |
