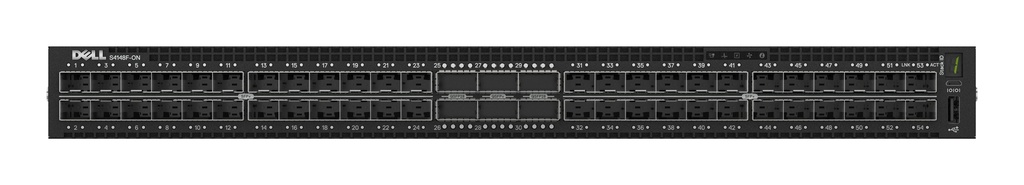

DELL S-Series S4148F-ON, Managed, L2/L3, Rack-montage, 1U
DELL S-Series S4148F-ON. Switch type: Managed, Switch-laag: L2/L3. Aantal USB 2.0-poorten: 1, Console port: RJ-45/Micro-USB. MAC-adrestabel: 272000 entries, Switchingcapaciteit: 1760 Gbit/s. Netwerkstandaard: IEEE 802.3. Netstekker: AC-in-aansluiting. Rack-montage, Vormfactor: 1U
Beheerfuncties
| Switch type | Managed |
| Switch-laag | L2/L3 |
| Quality of Service (QoS) | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| MIB-ondersteuning | IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB |
Poorten & interfaces
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal Gigabit Ethernet (koper)-poorten | Ja |
| Aantal moduleslots SPF+ | 48 |
| Aantal GSFP+-moduleslots | 2 |
| Console port | RJ-45/Micro-USB |
| Aantal USB 2.0-poorten | Ja |
| Netstekker | AC-in-aansluiting |
Netwerk
| Netwerkstandaard | IEEE 802.3 |
| 10G support | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Tagged VLAN |
Data-uitwisseling
| Switchingcapaciteit | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| MAC-adrestabel | 272000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9416 |
| Packet buffergeheugen | 12 MB |
Multicast-functies
| Multicast-ondersteuning | Ja |
Protocollen
| Beheerprotocollen | CLI, SNMP, REST, API’s |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
Design
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Ventilatiesysteem | Luchtstroom van voren naar achteren |
Prestatie
| Type processor | Ja |
| Intern geheugen | 4000 MB |
Energie
| Vermogenstoevoer inclusief | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroomverbruik (typisch) | 200 W |
| Vermogensverbruik (max) | 370 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Nee |
Eisen aan de omgeving
| Bedrijfstemperatuur (T-T) | 5 - 45 °C |
| Temperatuur bij opslag | -40 - 65 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 85 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
Gewicht en omvang
| Breedte | 431 mm |
| Diepte | 457 mm |
| Hoogte | 44 mm |
| Gewicht | 9,46 kg |
Logistieke gegevens
| Code geharmoniseerd systeem (HS) | 85176990 |
